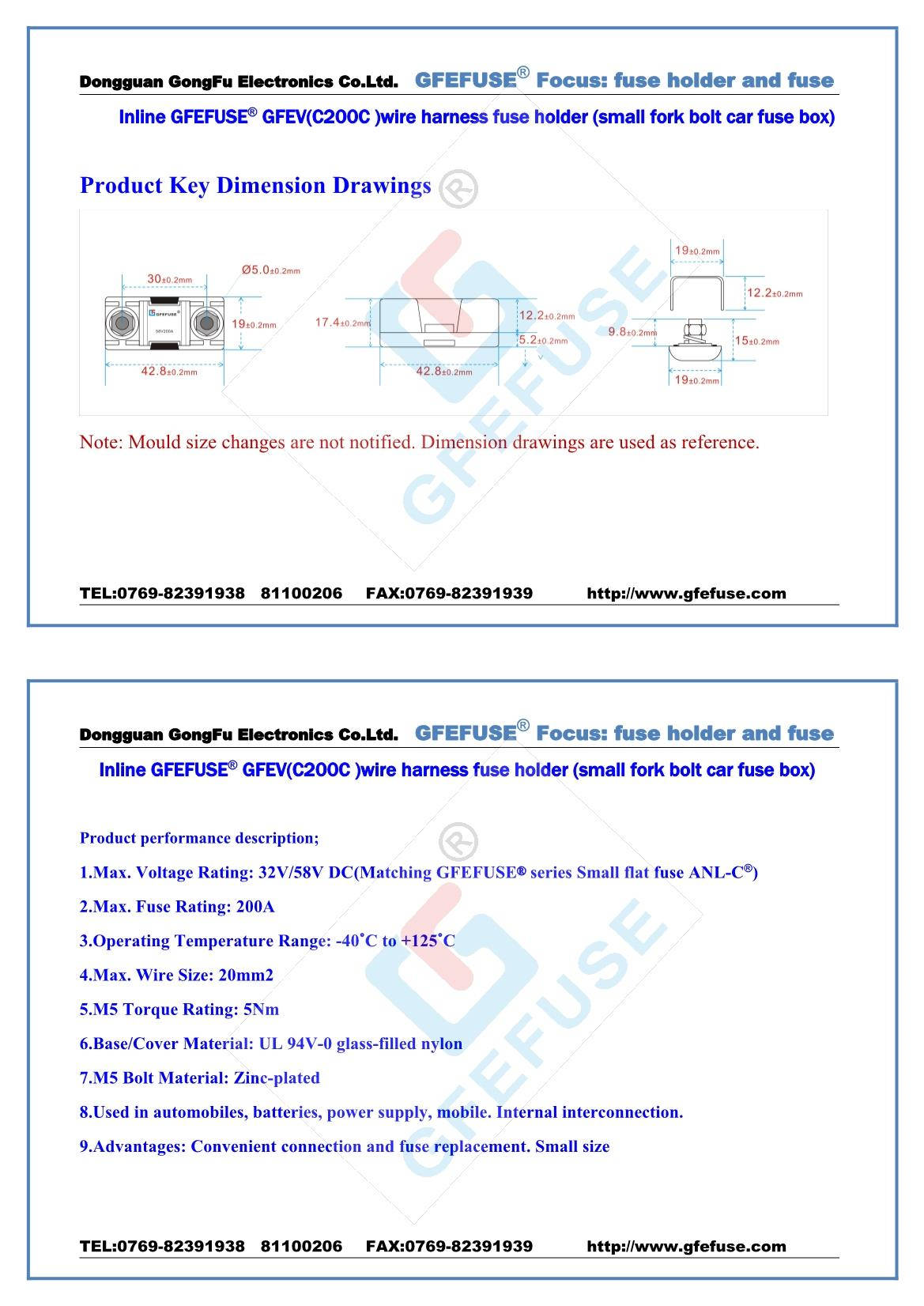

1.Max. Voltage Rating: 32V/58V DC(Matching GFEFUSE series Small flat fuse ANL-C)

2.Max. Fuse Rating: 200A

3.Operating Temperature Range: -40˚ ˚C to +125˚ ˚C

4.Max. Wire Size: 20mm2

5.M5 Torque Rating: 5Nm

6.Base/Cover Material: UL 94V-0 glass-filled nylon

7.M5 Bolt Material: Zinc-plated

8.Used in automobiles, batteries, power supply, mobile. Internal interconnection.

9.Advantages: Convenient connection and fuse replacement. Small size
